Crack Microscope

Back to Optical Measuring

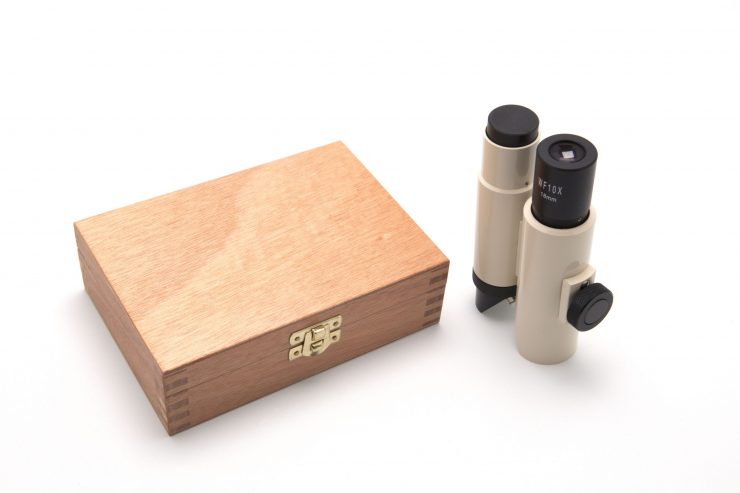

The high definition crack microscope is very easy to use and comes in a wooden pocket size case. The adjustable battery powered LED light source ensures a well-illuminated image under all working conditions.

If the location of each crack width reading is marked with a permanent marker pen repeat readings can be taken and any change in crack width recorded on the crack record sheet.


  • Resolution 0.02mm
  • Measuring range 4.00mm
  • Overall magnification x40
  • Microscope manufactured with strong metal casing
  • Supplied in a wooden case 150mm x 90mm x 40mm
  • Weight 560 grams

Supplied ready to use with:

  • Spare bulb for lamp to illuminate the cracked surface
  • NAMAS Certificate of Calibration
  • Crack Monitoring Record Sheet
